Full automatic shrink wrapping machine

GF1504

Greenforest

Wooden case

China

1

Email to us:greenforestdaisy@vip.163.com
Product Description

Applicaton:

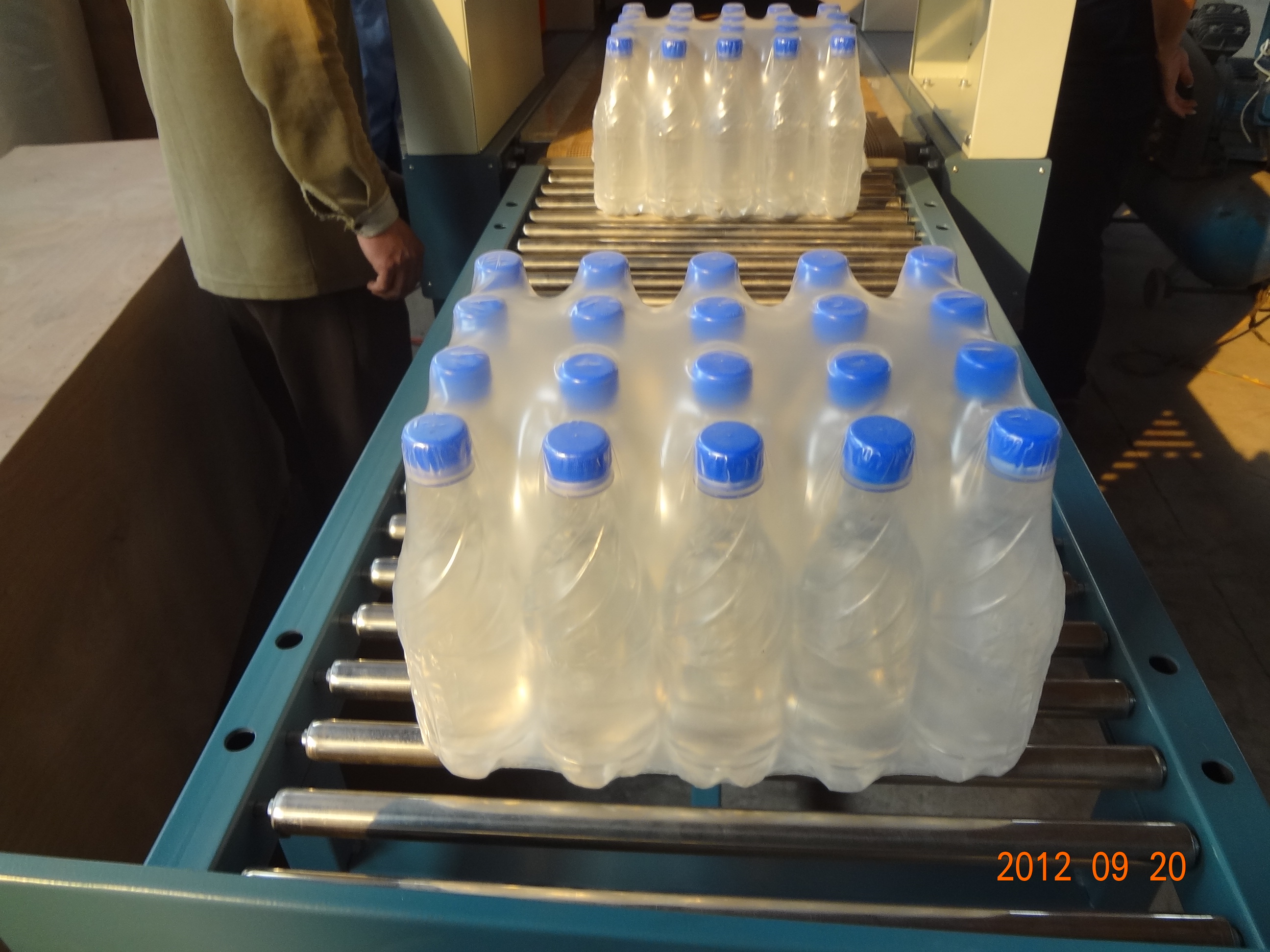

This machine is widely used in beverage, food and chemical packaging industries. It does not need the wooden cases, and bottles can be packed in square,
round and flat shape. Bottles packed by this machine have good visionary effect and it is an ideal equipment for beverage industry.


Main technical data:


The machine dimension L5050*W3300*H2100
The weight 1t
Heat shrinkable furnace size L3700*W920*H1750
The biggest package sizes L600*W400*H350
Packing speed 5000-12000 Bottles per hour
Conveyor belt height 920(adjustable100mm)
The rated power 380V 50HZ
Work pressure 0.6-0.8Mpa
The engine power 18kw
